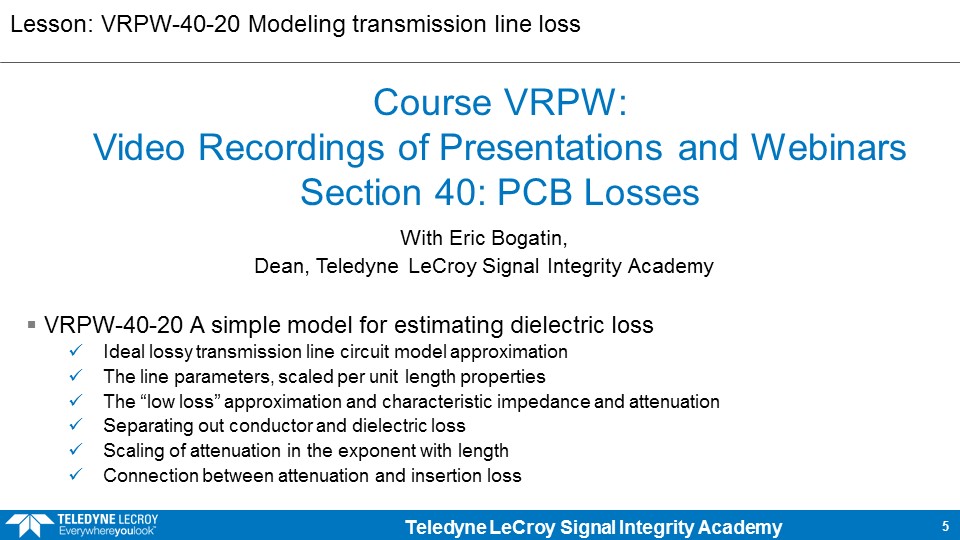

VRPW-40-20 Modeling transmission line loss

•  Ideal lossy transmission line circuit model approximation
•  The line parameters, scaled per unit length properties
•  The “low loss” approximation and characteristic impedance and attenuation
•  Separating out conductor and dielectric loss
•  Scaling of attenuation in the exponent with length
•  Connection between attenuation and insertion loss
