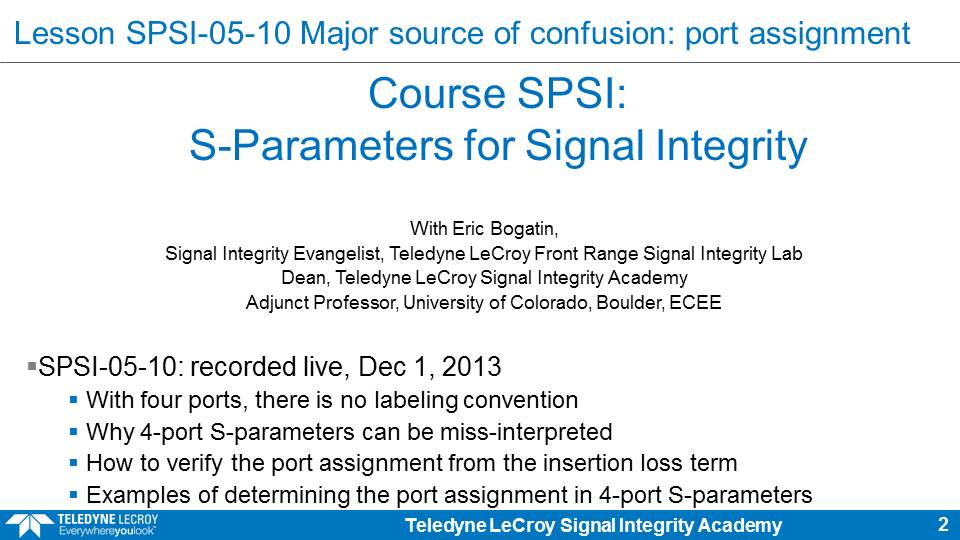

SPSI-05-10 Major source of confusion: port assignment

  •  With four ports, there is no labeling convention
  •  Why 4-port S-parameters can be miss-interpreted
  •  How to verify the port assignment from the insertion loss term
  •  Examples of determining the port assignment in 4-port S-parameters
