AGCD-12-30 Setting up the Simulator in SI Studio

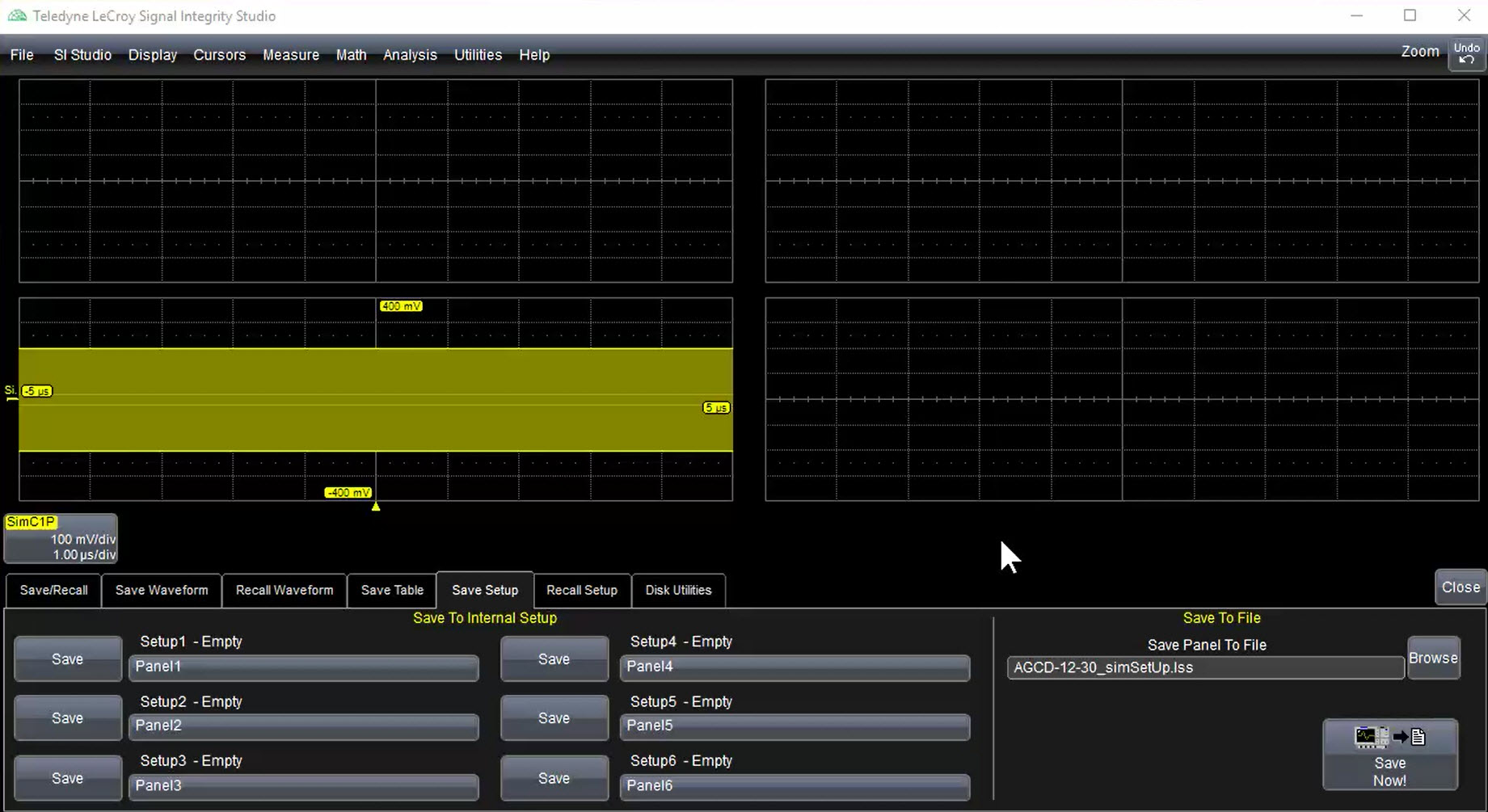

• Recalling the screen set up from the zip file on this landing page
• Zooming in on the waveform and moving the trace to other grids
• Adjusting the scales just right
• Three types of signals can be simulated
• Opening up the zoom control panel and the simulator control panel
• Adjusting the data rate and the clock rate
• Browsing each of the control tabs
